Overview
Holset VGT turbos have 2 connection points. The main gearbox housing and the VR sensor. The main gearbox housing connection is where the turbo gets power and accepts CANBus messages. The VR Sensor is an independent sensor strictly for measuring shaft speed of the turbo.
Connectors
HE351VE
Direct Mouser Link :Mouser Link
| Manufacturer | Part # | Connection | # of Pins |
|---|---|---|---|
| Housings | |||
| Delphi | 54200410 | Main Housing | 4 |
| Aptiv | 15324787 | Main Housing | 4 |
| Pins | |||
| Delphi / Aptiv | 10762803-L | Main Housing | 4 - 14-16AWG |
| Delphi | 54001800-L | Main Housing | 4 - 18-20AWG |
| Aptiv | 10757690-L | Main Housing | 4 - 18-20AWG |
| Seals | |||
| Delphi / Aptiv | N/A | Main Housing | Built-in |
HE300VG
Direct Mouser Link :Mouser Link
| Manufacturer | Part # | Connection | # of Pins |
|---|---|---|---|
| Housings | |||
| Kostal | 9441491 | Main Housing | 4 |
| Pins | |||
| Kostal | 22140492070050 | Main Housing | 4 - 14-16AWG |
| Seals | |||
| Kostal | 10800444522091 | Main Housing | 4 |
| Kostal | 10800444523091 | Main Housing | 4 |
VR Sensor
Direct Mouser Link :Mouser Link
| Manufacturer | Part # | Connection | # of Pins |
|---|---|---|---|
| Housings | |||
| TE | 282087-1 | VR Sensor | |
| Pins | |||
| TE | 183025-1 | VR Sensor | 2 - 15-18AWG |
| TE | 282438-1 | VR Sensor | 2 - 17-20AWG |
| Seals | |||
| TE | 281934-3 | VR Sensor | 2 - 16-20AWG |
| TE | 281934-2 | VR Sensor | 2 - 22-24AWG |
| Plugs | |||
| TE | 282081-1 | VR Sensor | 1 |

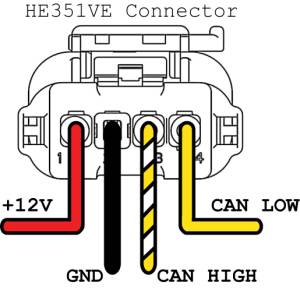

Pin Outs
